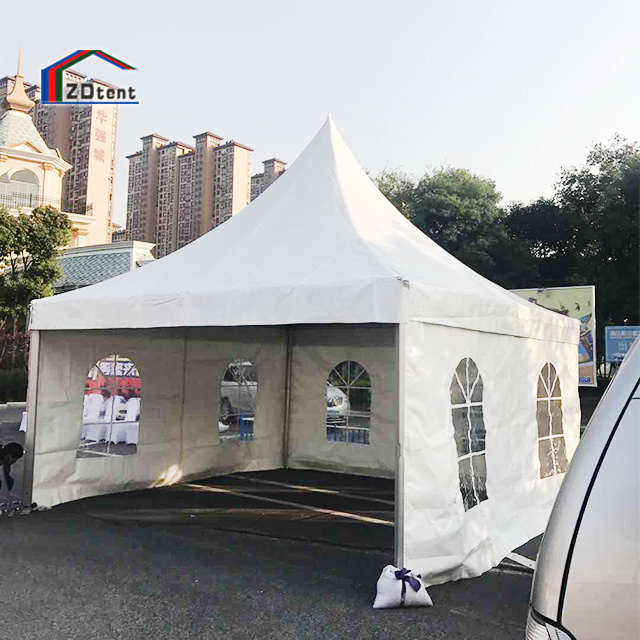

Outdoor High Quality Square Party Pagoda Tent 5X5 Tent
Specification 1)Size:From 3 meters to 40 meters2)Eave height: standard from2.5m,3m,4m to 5m upon span width(or special height per requested)3)Length:Unlimited,extended by 3m or 5m each bay Size specificationItemSpan(Width m)Bayspacing(m)Eave height(m)Ridge height(m)Main frameprofile(mm)Z&D-6632......
Send Inquiry
Product Description
Specification
1)Size:From 3 meters to 40 meters
2)Eave height: standard from2.5m,3m,4m to 5m upon span width(or special height per requested)
3)Length:Unlimited,extended by 3m or 5m each bay
Size specification
| Item | Span (Width m) | Bayspacing(m) | Eave height(m) | Ridge height (m) | Main frameprofile(mm) |
| Z&D-6 | 6 | 3 | 2.5 | 3.5 | 48x84x3 |
| Z&D-8 | 8 | 3 | 2.5 | 3.9 | 48x84x3 |
| Z&D-10 | 10 | 3 | 2.5 | 4.3 | 48x84x3/48x100x3 |
| Z&D-12 | 12 | 5 | 3 | 5.1 | 68x122x3 |
| Z&D-15 | 15 | 5 | 3 | 5.4 | 108x150x3 |
| Z&D-18 | 18 | 5 | 4 | 6.9 | 112x203x4 |
| Z&D-20 | 20 | 5 | 4 | 7.2 | 112x203x4 |
| Z&D-25 | 25 | 5 | 4 | 8.0 | 113x259x5 |
| Z&D-30 | 30 | 5 | 4 | 8.8 | 120x300x5 |
| Z&D-40 | 40 | 5 | 4 | 10.4 | 120x300x5 |
| Z&D-50 | 50 | 5 | 5 | 13 | 128x350x5 |

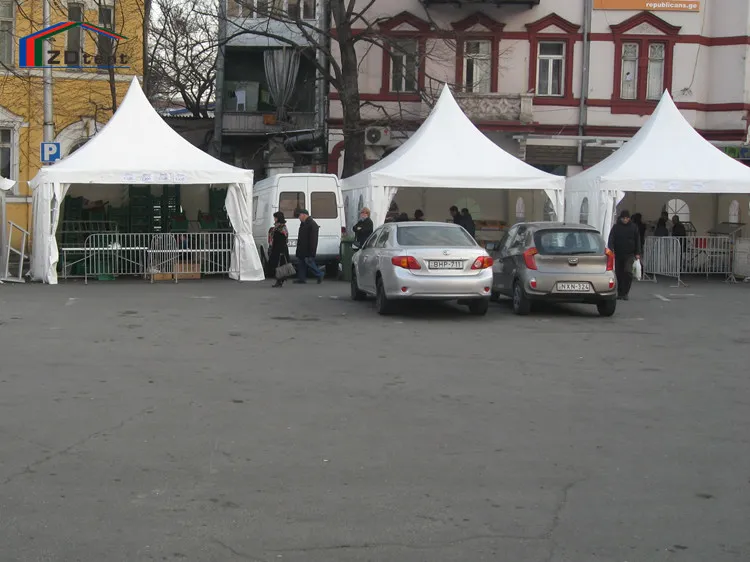

Outdoor high quality square party pagoda tent 5x5 tent air conditioned

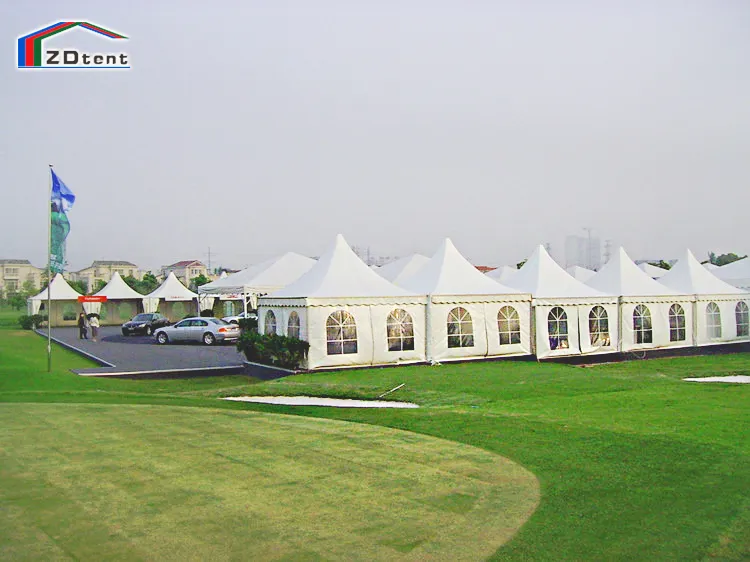

Outdoor high quality square party pagoda tent 5x5 tent air conditioned

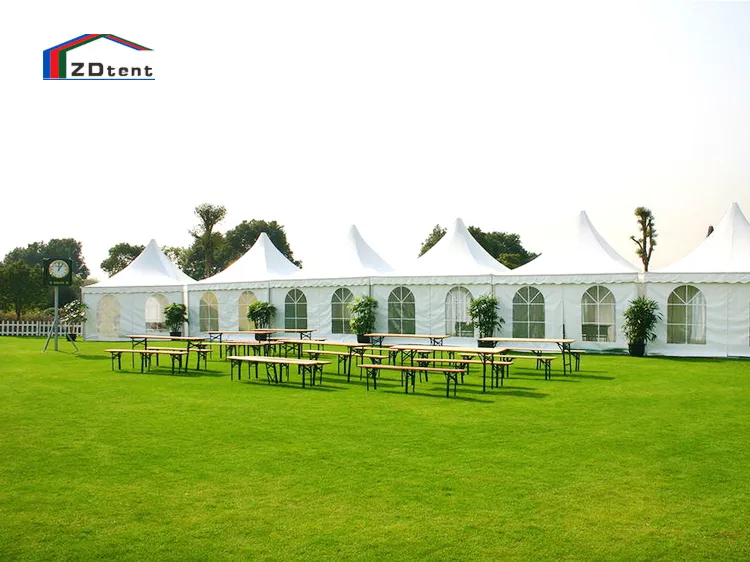

Outdoor high quality square party pagoda tent 5x5 tent air conditioned
Specifications
| Aluminum profile | high pressed extruded aluminum alloy 6061-T6 stainless,lightweight,druable,48x84x3mm for 3-10m tent 68x122x3mm,88x166x3mm,108x150x3mm,102x20x4mm for 10-20m tent 113x259x4mm,120x300x5mm for 20-40m tent 120x350x6mm for 40-50m tent |
| Steel parts | hot-dipped galvanized steel |
| Top roof fabric | 850g/sqm double coated pvc, block-out,waterproof,frame retardant meet M2,B1,DIN4012 standard |
| Side panels(optional) | (1)650g/sqm double coated pvc,translucent,waterproof,flame retardant meet M2,B1,DIN4012standard,or; (2)950g/sqm transparent pvc fabric,or; (3)soild walls:glass panel,sanwich panels,ABSpanels,color steel sheet |
| Allowed temperature | -20o to 70o environment |
| Max wind loading capacity | 100km/hour |
| Snow loading | 25kg/sqm |
1.3years gurantee,during this period we shall provide replacement for the parts due to quality problems.
2.Z&Dtent provide installation manual for our customers.
3.Assemble Supervisor is avaliable from Z&D tent to your country.
